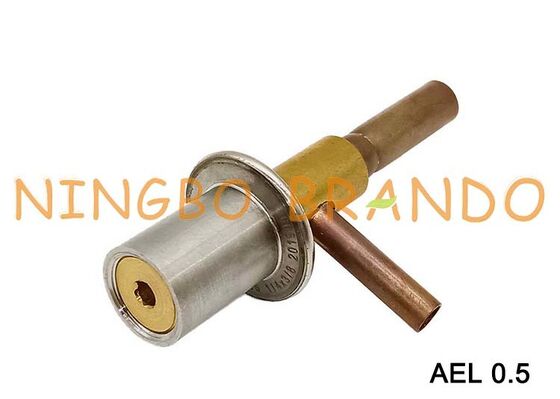

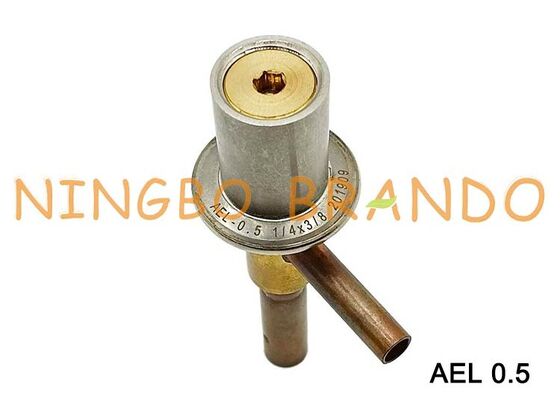

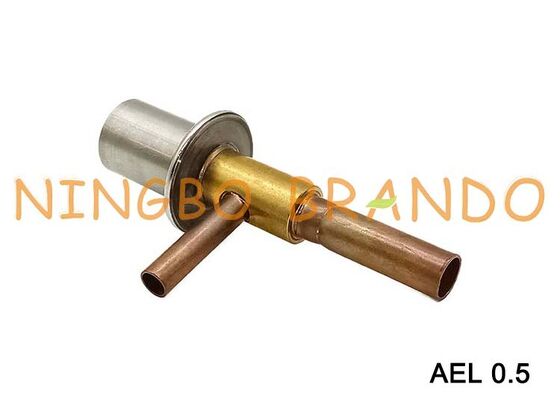

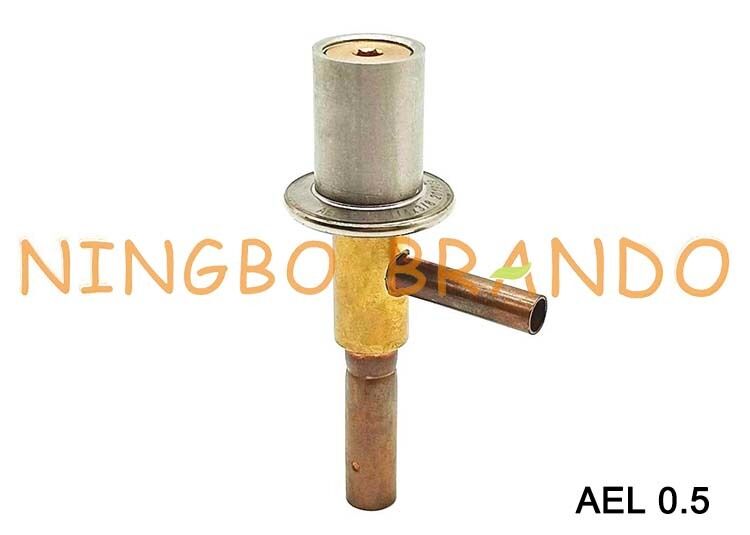

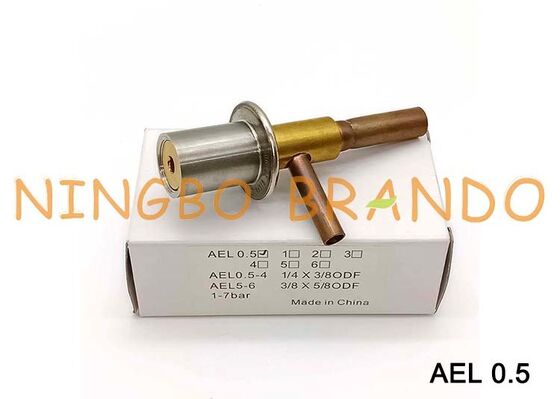

Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210

Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210

  • Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
  • Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
  • Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
  • Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
  • Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
جزئیات محصول:
محل منبع: چین
نام تجاری: BRANDO
گواهی: None
شماره مدل: AEL 0.5
پرداخت:
مقدار حداقل تعداد سفارش: 5 عدد
قیمت: قابل مذاکره
جزئیات بسته بندی: جعبه داخلی، کارتن، پالت
زمان تحویل: مذاکره
شرایط پرداخت: T/T، وسترن یونیون، مانی گرام
قابلیت ارائه: 100000 PCS در ماه
مخاطب
توضیحات محصول جزئیات
نام محصول: شیر انبساط اتوماتیک کد سفارش: AEL-222200, AEL-222210
اندازه پورت: ورودی 1/4 اینچ، خروجی 3/8 اینچی اندازه روزنه: 0.7 میلی متر
اتصال لوله: لحیم کاری شارژ حرارتی: همه CFC، HCFC، HFC، نه برای آمونیاک
تنظیمات کارخانه: 22 بار برنامه: تهویه مطبوع، خشک کن، رطوبت گیر، کولر آبی، یخ ساز و غیره
برجسته کردن:

Automatic expansion valve Honey well AEL- 0.5

,

AEL 0.5 Automatic Expansion Valve

,

Honey well expansion valve AEL-222210

Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210



Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure; Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.


1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar


Ordering Code of AEL Series Automatic Expansion Valve:

Model
Inlet (ODF)
Outlet (ODF)
Orifice Size
Type
AEL0.5
6mm
10mm
0.7
AEL-222200
1/4''
3/8''
0.7
AEL-222210
AEL 1.0
6mm
10mm
1.0
AEL-222201
1/4''
3/8''
1.0
AEL-222211
AEL 2.0
6mm
10mm
2.0
AEL-222202
1/4''
3/8''
2.0
AEL-222212
AEL 3.0
6mm
10mm
3.0
AEL-222203
1/4''
3/8''
3.0
AEL-222213
AEL 4.0
6mm
10mm
3.5
AEL-222204
1/4''
3/8''
3.5
AEL-222214
AEL 5
3/8''
5/8''
4.75
AEL-222285
AEL 6
10mm
16mm
5
AEL-222205
3/8''
5/8''
5
AEL-222215


Dimenison of AEL Series Automatic Expansion Valve:

                 Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210 0

Model
Valve Size
Connection
Dimension
Inlet (A)
Outlet (B)
C
D
E
F



AEL
0.5
1.0
2.0
3.0
4.0
6mm ODF
10mm ODF
58
36
106
54
1/4'' ODF
3/8'' ODF
5.0
6.0
10mm ODF
16mm ODF
64
47
122
69
3/8'' ODF
5/8'' ODF


Video of AEL 0.5 Automatic Expansion Valve:


Capacities of AEL Series Automatic Expansion Valve:

Type
Valve Size
Orifice Size
Nominal Capacity (kW)
R22
R134a
R404A
R507A





AEL
0.5
0.7
1.4
1.0
0.97
0.98
1.0
1.0
2.0
1.4
1.4
1.4
2.0
2.0
4.0
2.9
2.8
2.9
3.0
3.0
9.3
6.6
6.5
6.6
4.0
3.5
12.2
8.7
8.6
8.7
5.0
4.75
4.75
15.9
15.8
15.9
6.0
5.0
29.1
2.0.0
20.5
20.7
