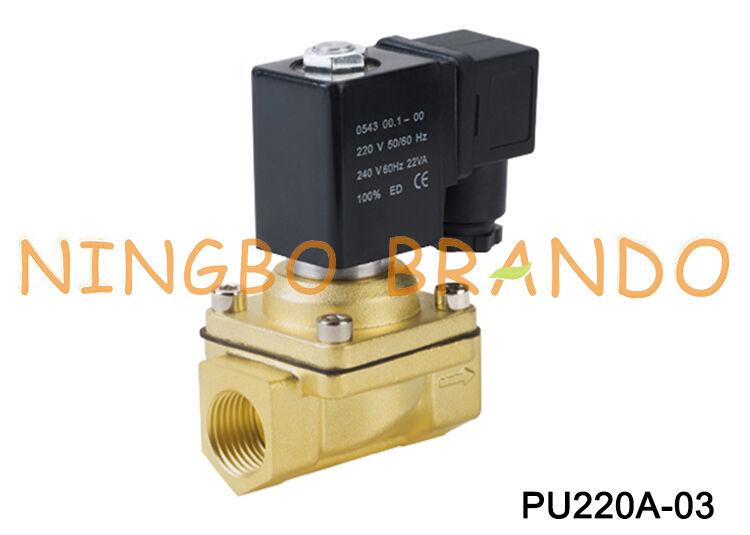

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V

  • PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V
PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V
جزئیات محصول:
محل منبع: چین
نام تجاری: BRANDO
گواهی: None
شماره مدل: PU220A-03
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد کامپیوتر
قیمت: قابل مذاکره
جزئیات بسته بندی: جعبه داخلی، کارتن، پالت
زمان تحویل: مذاکره
شرایط پرداخت: T/T، وسترن یونیون، مانی گرام
قابلیت ارائه: 100000 عدد در ماه
مخاطب
توضیحات محصول جزئیات
اندازه پورت: 3/8 اینچ اندازه روزنه: 13 میلی متر
عملیات: آسانسور کمکی تابع: 2 راه به طور معمول بسته است
جنس بدنه: برنج جنس دیافراگم: NBR، FKM، EPDM
ولتاژ: 12VDC ، 24VDC ، 24VAC ، 110VAC ، 220VAC
برجسته کردن:

SHAKO PU220A-03 DC24V Solenoid valve,Pu220a-03 2 2 Way Solenoid Valve,Shako 2/2 Way Solenoid Valve PU220A

,

Pu220a-03 2 2 Way Solenoid Valve

,

Shako 2/2 Way Solenoid Valve PU220A

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V


PU220A series Solenoid Vave Features:


1. Port 3/8, 1/2, 3/4 or 1" BSP or NPT thread
2. PU220A 2/2 way normally closed, PU220AN normally open.
3. Zero rated / direct acting 0 to 8.5 bar, special option high power 18.5 Watt coil for 0~12 bar
4. Sealing NBR, EPDM, Viton or HNBR.
5. Flange type is available for JIS 10K, ANSI 150LB and PN16.
6. Quick response.
7. Stainless steel extruded stem provides exceptional durability.
8. IP65 100% ED coil with option for Ex-proof coil.
9. Most voltages available.


Ordering Code of PU220A series Solenoid Valve:

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 0


Main Dimension of PU220A series Solenoid Valve:

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 1

PU220 Series
A
B
C
R
PU220A-03
66.5
101
48
3/8''
PU220A-04
66.5
101
48
1/2''
PU220A-06
71
107
58
3/4''
PU220A-08
96
120.5
70
1''


Technical Data of PU220A series Solenoid Valve:

PU220A Series
PU220A-03
PU220A-04
PU220A-06
PU220A-08
Orifice Size
13.0mm
13.0mm
20.0mm
25.0mm
Port Size
3/8''
1/2''
3/4''
1''
Effective Area
76mm²
76mm²
162mm²
220mm²
Cv Value
4.00
4.00
8.60
11.0
Medium
Compressed Air, Light oil, Water
Action
Assisted Lift
Function
2 Way, Normally Closed
Body Material
Brass
Pressure
Range (bar)
0 to 7 kg/cm²
Temperature Range
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃, Si: -15 to 150℃
Duty Cycle
100% ED
Coil Type
DIN
Protection Class
IP65
Insulation Class
F
Standard Voltages
24VDC, 110VAC, 220VAC, the other voltage is optional




Brando Solenoid Valve Factory Production Video:



More Shako Type Solenoid Valves for you to choose:

PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 2 PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 3
PU220A Series PU225A Series
PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 4 PU220A-03 3/8'' Shako Type 2 Way NC Brass Solenoid Valve 24V 110V 220V 5
SPU225A Series PU225S Series
