| محل منبع: | چین |
| نام تجاری: | BRANDO |
| گواهی: | CE |
| شماره مدل: | C113443, C113444 |
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | کیسه پلاستیکی، جعبه، کارتن، پالت |
| زمان تحویل: | 4 تا 7 روز کاری |
| شرایط پرداخت: | L/C، T/T، Paypal، Western Union |
| قابلیت ارائه: | 100000 مجموعه در هر ماه |
| نام محصول: | دیافراگم پالس | کد سفارش: | C113443 ، C113444 ، C113-443 ، C113-444 |
|---|---|---|---|
| مواد دیافراگم: | TPE، NBR، FKM | 1 مجموعه: | 1 عدد دیافراگم، 1 عدد فنر |
| درگاه شیر پالس نصب شده: | 3/4 '' ، 1 '' | مدل دریچه پالس مناسب: | SCG353A043 ، SCG353A044 ، G353A041 ، G353A042 |
| برجسته کردن: | ASCO Diaphragm C113443,ASCO Diaphragm C113444,ASCO Pulse Valve Diaphragm,ASCO Diaphragm C113444,ASCO Pulse Valve Diaphragm |
||

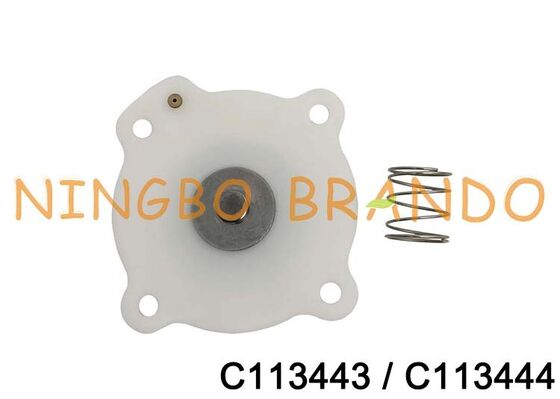

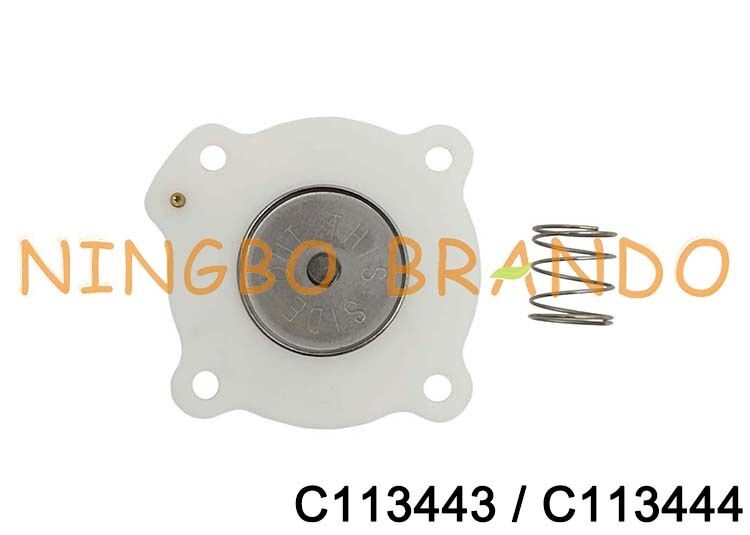

C113443 C113444 Diaphragm Repair Kit For SCG353A043 SCG353A044 ASCO Pulse Valve
C113443, C113444, C113-443, C113-444 Diaphragm (Membrane) for ASCO pulse valve SCG353A043, SCG353A044, G353A041, G353A042; TPE, NBR, Viton are all available; Pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Ordering Number of Diaphragm For ASCO Pulse Valve:
|
Valve Port Size
|
Pulse Valve Model
|
Diaphragm Model
|
Diaphragm Material
(FKM is also available)
|
|
3/4''
|
SCG353A043
|
C113444
|
TPE (White), NBR (Black)
|
|
1''
|
SCG353A044
|
||
|
3/4''
|
SCG353-052
|
||
|
1''
|
SCG353-053
|
||
|
3/4''
|
SGG353A043
|
||
|
1''
|
SGG353A044
|
||
|
3/4''
|
SGG353-052
|
||
|
1''
|
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
|
C113827
|
NBR
|
|
SGG353A065
|
|||
|
2''
|
SCG353A050
|
C113685, C113686
|
NBR
|
|
2 1/2''
|
SCG353A051
|
||
|
3''
|
SCXE353.060
|
C123432, C123433
|
NBR
|
|
SCG353D060
|
|||
|
3/4''
|
G3530A41
|
C113443
|
NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
1 1/2''
|
G353A046
|
C113826
|
NBR
|
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
NBR
|
|
2 1/2''
|
G353A049
|
Main Dimension of C113443, C113444 Diaphragm:
![]()
Product Video of C113443, C113444 Membrane:
Pictures of Pulse Valve Diaphragm Production:
![]()
