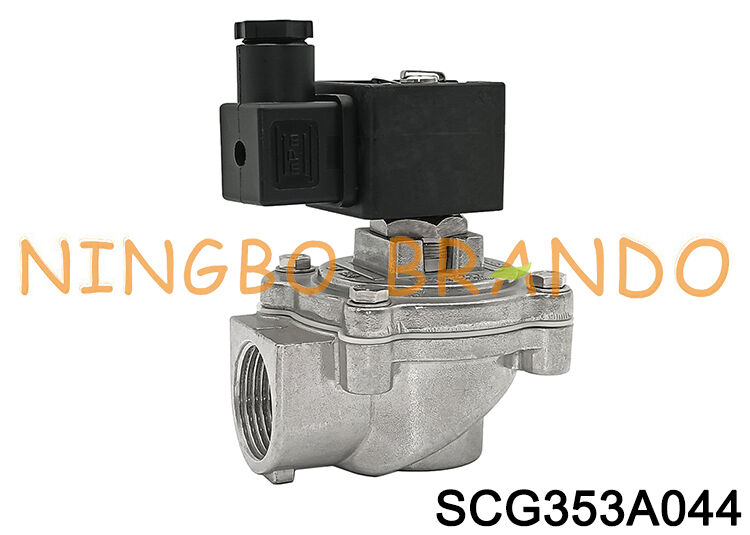

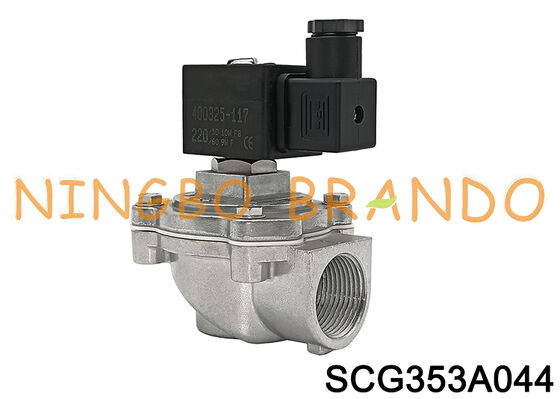

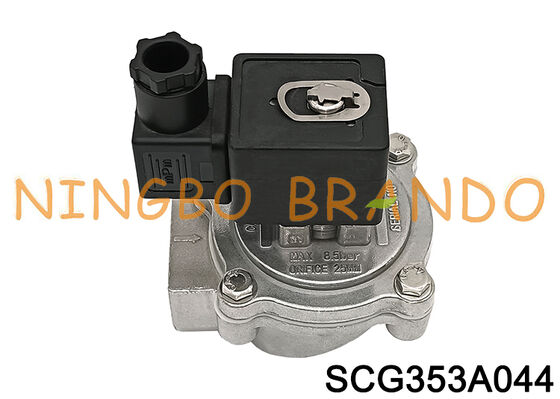

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector

  • ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
  • ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
  • ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
  • ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector
جزئیات محصول:
محل منبع: چین
نام تجاری: Brando
گواهی: CE
شماره مدل: SCG353A044
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: قابل مذاکره
جزئیات بسته بندی: جعبه داخلی ، کارتن ، پالت
زمان تحویل: مذاکره
شرایط پرداخت: L/C ، T/T ، Western Union ، PayPal
قابلیت ارائه: 100000 قطعه در ماه
مخاطب
توضیحات محصول جزئیات
نام محصول: شیر جت پالس اندازه بندر: 1 ''
از راه دور یا انتگرال: خلبان انتگرال جنس بدنه: آلومینیوم
مواد دیافراگم: NBR (TPE در صورت درخواست) دامنه فشار: 0.3MPa تا 0.8MPa
نوع دریچه: زاویه راست (نخ) ولتاژ: 220VAC, 24VDC
برجسته کردن:

Pulse Jet Valve SCG353A044,1'' SCG353A044,Right Angle Pulse Valve

,

1'' SCG353A044

,

Right Angle Pulse Valve

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector


This 353 series of pulse jet valves includes models with threaded connections from 3/4'' to 2-1/2''. These valves are particular used for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.


They have an inlet port at 90° to the outlet port.


The pulse jet valves differ in types with an integrated pilot valve or with external pneumatic control.


The special design ensures extremely fast opening, high flow and easy installation.


Optionally, we also offer versions with ATEX certified pilot valves.

A well thought-out structure and a fast delivery time for spare parts such as diaphragms, springs and coils enable simple maintenances.


Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


Dimension of SCG353A044 Pulse Jet Valve:

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 0


Video of SCG353A044 Pulse Jet Valve:


More ASCO Type Pulse Valve For You to Choose:

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 1ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 2ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 3

           Right Angle Type                        Remote Pilot Type                       Immersion Type

ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 4ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 5ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 6ASCO Type 1'' Electromagnetic Pulse Valve SCG353A044 For Dust Collector 7

            Diaphragm                     Solenoid Coil                Armature Assembly            Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
