| محل منبع: | CHINA |
| نام تجاری: | BRANDO |
| گواهی: | CE |
| شماره مدل: | DMF-Z-50S |
| مقدار حداقل تعداد سفارش: | 1 PIECE |
|---|---|
| قیمت: | negotiation |
| جزئیات بسته بندی: | BOX, CARTON, PALLET |
| زمان تحویل: | 7 DAYS |
| شرایط پرداخت: | Western Union, T/T |
| قابلیت ارائه: | 200000PCS PER MONTH |
| Material: | ADC 12 Alumininum | Voltage: | AC / DC |
|---|---|---|---|
| Coil Color: | Glass Green and Dark Green | Terminal: | DIN43650A |
| Connecting Size: | G 2" | Seal Material: | NBR or FKM |
| برجسته: | ,,pulse solenoid valve |
||

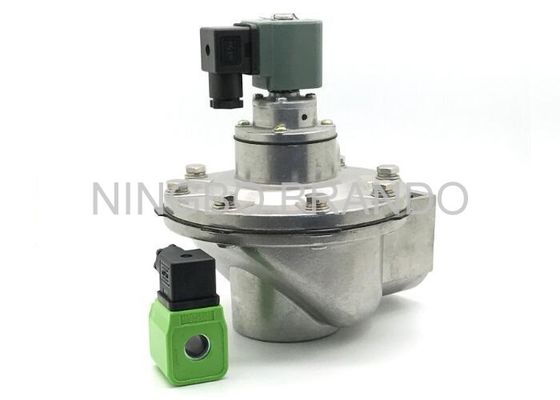

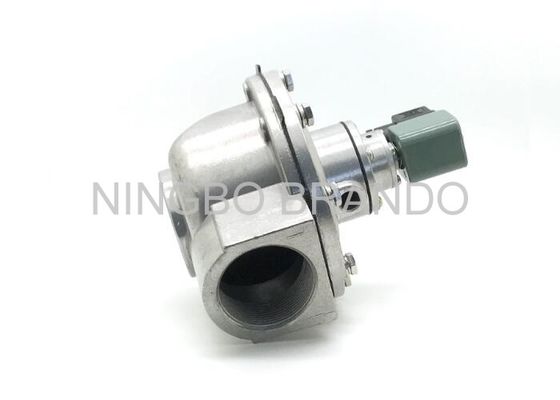

DC 24V Pulse Valve DMF-Z-50S with Big and Small NBR Long Working Life Diaphragm
The company's bag-type dust products are used in the world of iron and steel metallurgy, cement, thermal power, chemical, construction, waste incineration and other industries in the dust control and flue gas purification products exported to the United States, Europe, Japan and Southeast Asia and other regions , In the domestic and foreign markets enjoy a high reputation and visibility
DMF-Z-50S pulse valve with bellow specifications:
Diaphragm Diameter (biggest position) 160mm
Small diaphragm diameter 66mm
Kv/Cv 61.24/71.47
Injection Area 18~28
Inlet/Outlet Pipe Size G 2"
Weight 2.4 kgs
Overall Dimensions of DMF-Z-50S:
| A | B | C | D | E | F | |
| DMF-Z-50S | 180 | 100 | 43 | G 2" | φ160 | 206 |
Material Description of Each Part of DMF-Z-50S Pulse Valve:
1, Valve Body: ADC12, Alumininum
2, Clip: SS304
3, Plunger tube assembly: 430FR and SS304 stainless steel
4, Diaphragm: NBR/FKM
5, Spring: SS304
6, Screw: SS302
Puls Valve Working Shop:
Welcome your any question, we will response at once:
Contact: Brandon Bao
Tel: +86-574-83879820
Mobile/WhatApp/Wechat: +86 13454729544
Skype: brandon-bao
E-mail: brandon@brandopneumatic.com
